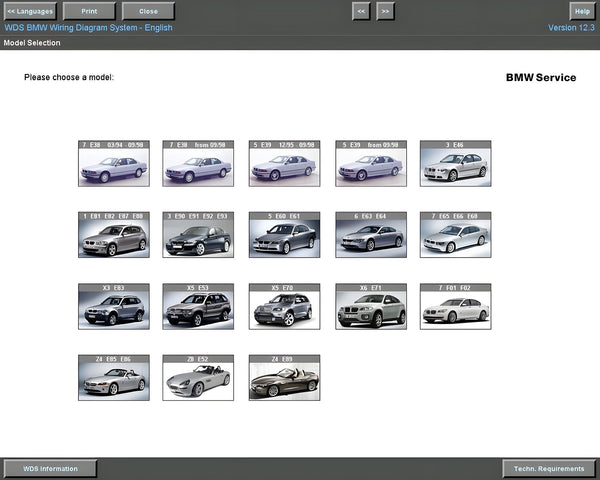

BMW WDS 12.3 - Complete Wiring Diagram System

Wiring Diagram System - Complete Factory Electrical Schematics for BMW E-Series

BMW WDS 12.3 (Wiring Diagram System) is the official offline platform used by BMW technicians to navigate factory wiring diagrams, connector views, and signal flow across the entire E-Series model range. Whether you're troubleshooting electrical issues, tracking signal paths, or installing retrofit equipment — WDS delivers clear, interactive diagrams straight from BMW's internal database.

Key Features

• Full-color interactive wiring diagrams for all major BMW E-Series systems
• Coverage includes power, lighting, communication, comfort, safety, drivetrain & chassis systems
• Pinpoint module locations, fuse/relay panels, and ground points
• Searchable by model, system, component, or control unit
• Zoom, trace, and highlight signal flow between components
• Completely offline — no subscription, no internet dependency
• Built-in component information and wire color references

📌 A must-have for BMW electrical diagnostics, retrofitting, and repair.

Vehicle Coverage

Covers full BMW E-Series model range up to 2009

• Includes platforms such as E36, E38, E39, E46, E53, E60, E61, E63, E64, E65, E66, E70, E87, E90, and more

System Requirements

• OS: Windows 10 Pro 64-bit (English version)
• Storage: SSD with at least 20GB free space
• Processor: Intel Core i5 or better
• Memory: 8GB RAM or more

Professional Installation

✅ Fully installed BMW WDS 12.3 system
✅ Remote installation via AnyDesk
✅ 1 Month of Technical Support for setup-related issues
✅ Installed within 72 hours guaranteed!

Need OEM electrical diagrams for BMW E-Series? Book your BMW WDS 12.3 installation today and simplify your wiring diagnostics — offline, detailed, and factory-accurate.
