Inside Porsche PIWIS: From Vehicle Analysis to Final Calibration
Why Porsche Diagnosis Begins With a Vehicle Analysis
A Porsche repair should not begin with a single fault code.
Modern Porsche vehicles contain numerous control units that exchange information continuously. A warning message in one system may be caused by low voltage, interrupted communication, an incorrect measured value, a failed calibration or a fault in a completely different control unit.
This is why Porsche PIWIS is structured around vehicle analysis rather than basic OBD scanning.
A professional PIWIS session can establish the condition of the complete vehicle before the technician begins replacing components. It provides a system-wide view of control-unit communication, stored faults, identification data and measured values that can be used to build a more accurate repair plan.
The objective is not merely to find faults. It is to understand which faults are primary, which are consequential and which procedures must be completed before the vehicle can be returned to service.
What a Porsche Vehicle Analysis Log Reveals
The Vehicle Analysis Log, commonly abbreviated as VAL, is an important part of Porsche workshop procedures.
A VAL creates a documented snapshot of the vehicle’s electronic condition. Depending on the vehicle and procedure, it can include:
- Detected control units
- Stored and active fault entries
- Control-unit identification data
- Software and hardware information
- Communication status
- Relevant measured values
- Vehicle configuration details
Porsche technical procedures frequently instruct technicians to create an initial vehicle analysis before carrying out repairs, software campaigns or control-unit work. A second analysis may then be created after the procedure to confirm the final vehicle condition.
This is more useful than a simple scan because it allows the technician to compare the vehicle before and after the repair.
Why Measured Values Matter More Than a DTC Description
A diagnostic trouble code identifies the system that detected a problem. It does not always identify the failed part.
PIWIS allows technicians to inspect measured values from the relevant control units and compare what the vehicle is reporting with the expected operating condition.
Measured values may be used to evaluate:
- Battery and charging-system voltage
- Pressure and temperature sensors
- Fuel and tank-level information
- Wheel-speed and chassis data
- Engine and transmission operating values
- Hybrid and high-voltage system information
- Control-unit communication status
This becomes especially important when a fault is intermittent or when several systems report secondary faults caused by one underlying issue.
Real Porsche Workshop Jobs That Require PIWIS
PIWIS is not limited to reading and clearing fault memory. It is used across a wide range of Porsche workshop operations.
Common professional use cases include:
- Complete vehicle scans and fault diagnosis
- Control-unit identification and communication checks
- Measured-value analysis
- Actuator and drive-link tests
- Maintenance and service reset procedures
- Battery registration and energy-management procedures
- Steering, chassis and sensor calibrations
- PDK-related adaptations and service procedures
- Electronic parking-brake functions
- Control-unit coding and replacement procedures
- Software campaign and programming operations where supported
- Post-repair vehicle validation
These functions are the reason specialist Porsche workshops use PIWIS even when they already own high-end multi-brand scan tools.
Control Unit Coding After Replacement or Retrofit Work
Installing a replacement Porsche control unit does not automatically complete the repair.
The module may need to be identified, coded, adapted or initialized so that it matches the vehicle configuration and communicates correctly with the remaining systems.
Control-unit work can involve:
- Reading extended identification data
- Checking part and software numbers
- Updating vehicle data
- Applying supported coding
- Completing adaptation procedures
- Running required calibrations
- Clearing consequential faults
- Confirming communication after installation
This is particularly important on vehicles where comfort, powertrain, chassis, lighting or infotainment systems are closely integrated.
Programming and Software Campaign Procedures
Porsche control-unit programming is a guided process rather than a casual software update.
Official workshop procedures regularly specify the required PIWIS software level, programming function, control unit, programming code and subsequent work that must be completed after the update.
A typical programming procedure can involve:
- Confirming the applicable vehicle and control unit
- Connecting a suitable battery charger or power supply
- Verifying vehicle voltage
- Connecting the PIWIS VCI through a stable wired connection
- Starting the guided programming sequence
- Following ignition-cycle instructions
- Automatic coding or recoding where specified
- Reading the updated software identification
- Clearing fault memory
- Creating a final vehicle analysis log
Some programming, campaign and protected functions require valid online Porsche access. Diagnostic, measured-value, service and many local workshop functions depend on the tester generation, software configuration and vehicle platform.
Why Voltage Stability Is Critical During PIWIS Programming
Programming a Porsche control unit while vehicle voltage is unstable can interrupt the process and leave the control unit incomplete or unavailable.
Porsche workshop instructions repeatedly require a suitable battery charger or power supply and direct the technician to verify actual vehicle voltage before programming begins.
A professional setup should therefore include:
- A regulated workshop power supply
- Correct voltage for the specified procedure
- A healthy vehicle battery
- A reliable diagnostic computer
- A stable VCI connection
- No unnecessary electrical loads during programming
Battery support is not an optional precaution during software work. It is part of the programming procedure.
Why a Wired VCI Connection Is Preferred for Control Unit Work
Wireless communication may be convenient during normal diagnosis, but Porsche technical instructions frequently specify connecting the PIWIS Tester directly to the vehicle communication interface through USB during coding and programming.
The reason is simple: a temporary wireless interruption can terminate communication while data is being written to a control unit.
A wired VCI connection is especially important during:
- Control-unit programming
- Automatic coding
- Software campaigns
- Control-unit replacement
- Complex calibration procedures
For ordinary fault diagnosis and measured-value checks, the appropriate communication method depends on the interface and workshop setup. For control-unit software work, stability should take priority over convenience.
Calibrations That Cannot Be Treated Like Simple Resets
Porsche vehicles use calibration procedures across chassis, driver-assistance, steering, powertrain and hybrid systems.
A calibration is not merely a fault-memory reset. It teaches a control unit the reference values or physical positions required for correct operation.
Depending on the vehicle and repair, PIWIS may be used for procedures involving:
- Steering-angle and chassis systems
- Ride-height or suspension-related functions
- Rear-axle steering
- Camera and driver-assistance systems
- PDK and drivetrain adaptations
- Electric-machine or hybrid-system procedures
- Window, roof and body-electronics initialization
Skipping the required calibration can leave warning messages active or cause the repaired system to operate incorrectly even when the hardware installation is correct.

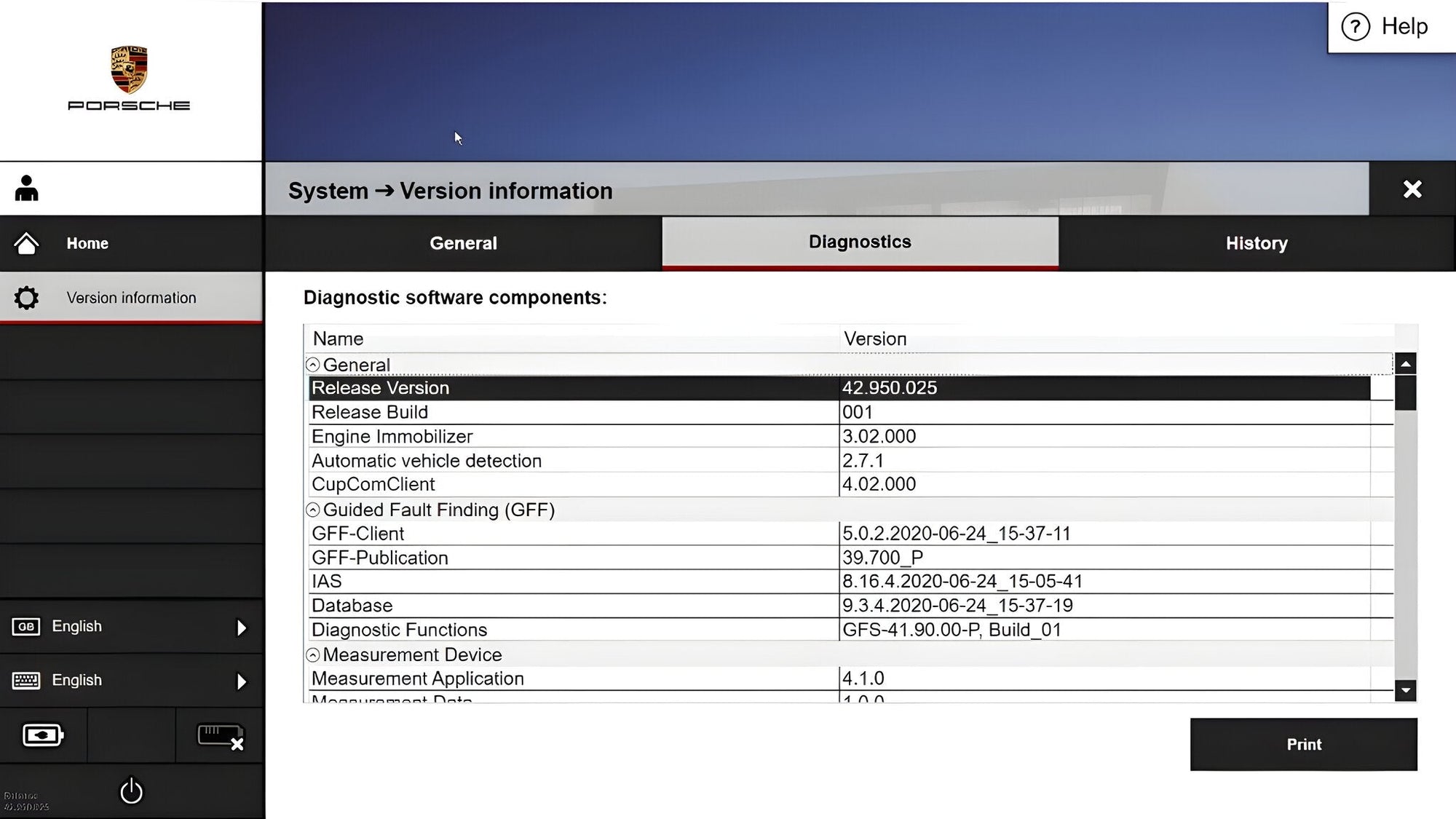

PIWIS Tester Generations and Porsche Model Support
PIWIS has evolved through several tester generations as Porsche vehicle electronics and communication systems have changed.
| Tester Generation | General Workshop Direction | Important Consideration |
|---|---|---|
| PIWIS Tester II | Earlier Porsche diagnostic and programming workflows | Relevant to older supported model generations and historical workshop procedures |
| PIWIS Tester 3 | Broad Porsche diagnostics, coding, measured values and control-unit procedures | Commonly associated with many 911, 718, Cayenne, Macan and Panamera generations |
| PIWIS Tester 4 | Current Porsche workshop diagnostic direction | Used in recent official procedures, including current vehicle platforms and software campaigns |
Exact model, year and function support depends on the PIWIS tester generation, installed software level, VCI, vehicle platform and whether the procedure requires online Porsche authorization.
Porsche Models Commonly Diagnosed With PIWIS
PIWIS is used across the Porsche model range, with exact support determined by tester generation and software data.
| Porsche Model Family | Examples of PIWIS Workshop Use |
|---|---|
| 911 | Vehicle analysis, coding, service functions, control-unit diagnosis and calibrations |
| Boxster and Cayman / 718 | Powertrain diagnosis, body functions, coding, adaptations and maintenance procedures |
| Cayenne | Control-unit diagnosis, air-suspension functions, powertrain work and software procedures |
| Macan | Vehicle analysis, chassis and drivetrain diagnosis, service functions and module procedures |
| Panamera | Control-unit programming, hybrid-system diagnosis, coding and vehicle-network analysis |
| Taycan | High-voltage diagnostics, software campaigns, measured values and control-unit procedures |
Why Generic Porsche Scanners Have Clear Limits
A high-quality aftermarket scanner can be useful for routine fault reading and maintenance functions. The limitation appears when the repair requires Porsche-specific control-unit logic.
PIWIS becomes more important when the workshop needs:
- A complete Porsche vehicle analysis
- Extended control-unit identification
- Porsche-specific measured values
- Guided control-unit functions
- Supported coding and adaptations
- Model-specific calibrations
- Software campaign procedures
- Final vehicle validation after repair
The difference is not simply the number of functions displayed on the screen. It is whether the diagnostic path follows Porsche’s own workshop structure.
Offline and Online PIWIS Functions
PIWIS capability depends on the tester configuration and the function being performed.
Many workshop activities revolve around local vehicle communication, including fault diagnosis, measured-value analysis, actuator tests, service functions, adaptations and supported coding procedures.
Other operations may require online Porsche access, such as certain software campaigns, protected functions, vehicle-specific enabling procedures or current factory programming data.
This distinction should be understood before beginning the job. A professional workshop first identifies the exact procedure, then confirms whether the required access, software and communication hardware are available.
Common PIWIS Mistakes That Create Unnecessary Risk
- Starting programming without a regulated power supply
- Using wireless communication during critical control-unit writing
- Ignoring the required PIWIS software version
- Clearing fault memory before saving the original vehicle analysis
- Replacing modules before checking measured values and communication
- Skipping coding, adaptation or calibration after component replacement
- Assuming every function is available offline
- Using a tester generation that does not match the vehicle platform
Frequently Asked Questions
What does Porsche PIWIS do?
Porsche PIWIS is used for vehicle analysis, fault diagnosis, measured values, actuator tests, service functions, coding, adaptations, calibrations and supported control-unit programming.
What is a PIWIS Vehicle Analysis Log?
A Vehicle Analysis Log records the electronic condition of the vehicle, including detected control units, fault entries, identification information and relevant diagnostic data.
Can PIWIS code Porsche control units?
PIWIS supports coding procedures for applicable control units and vehicles. Exact capability depends on the tester generation, software level, vehicle and access requirements.
Can Porsche PIWIS perform programming?
Yes, PIWIS is used in official Porsche control-unit programming and software campaign procedures. Some functions require online access and the correct factory data.
Is a battery charger required for PIWIS programming?
Yes. Stable vehicle voltage is essential during control-unit programming, and Porsche workshop procedures specify using suitable battery support.
Why should the PIWIS VCI be connected by USB during programming?
A wired connection reduces the risk of communication loss while software or coding data is being written to a control unit.
Which Porsche models work with PIWIS?
PIWIS is used across Porsche model families including 911, Boxster, Cayman, 718, Cayenne, Macan, Panamera and Taycan. Exact support depends on tester generation and software level.
What is the difference between PIWIS Tester 3 and PIWIS Tester 4?
They belong to different Porsche diagnostic generations. PIWIS Tester 4 is used in current official procedures, while PIWIS Tester 3 remains associated with a broad range of earlier and recent Porsche platforms.
Final Thoughts
Porsche PIWIS is valuable because Porsche repairs often require more than clearing a stored fault.
A complete workshop process can involve vehicle analysis, measured-value interpretation, control-unit communication, coding, calibrations, service procedures and final validation after the repair.
For Porsche specialists, PIWIS provides the structured diagnostic environment needed to move from the first vehicle scan to a properly documented and completed repair.
