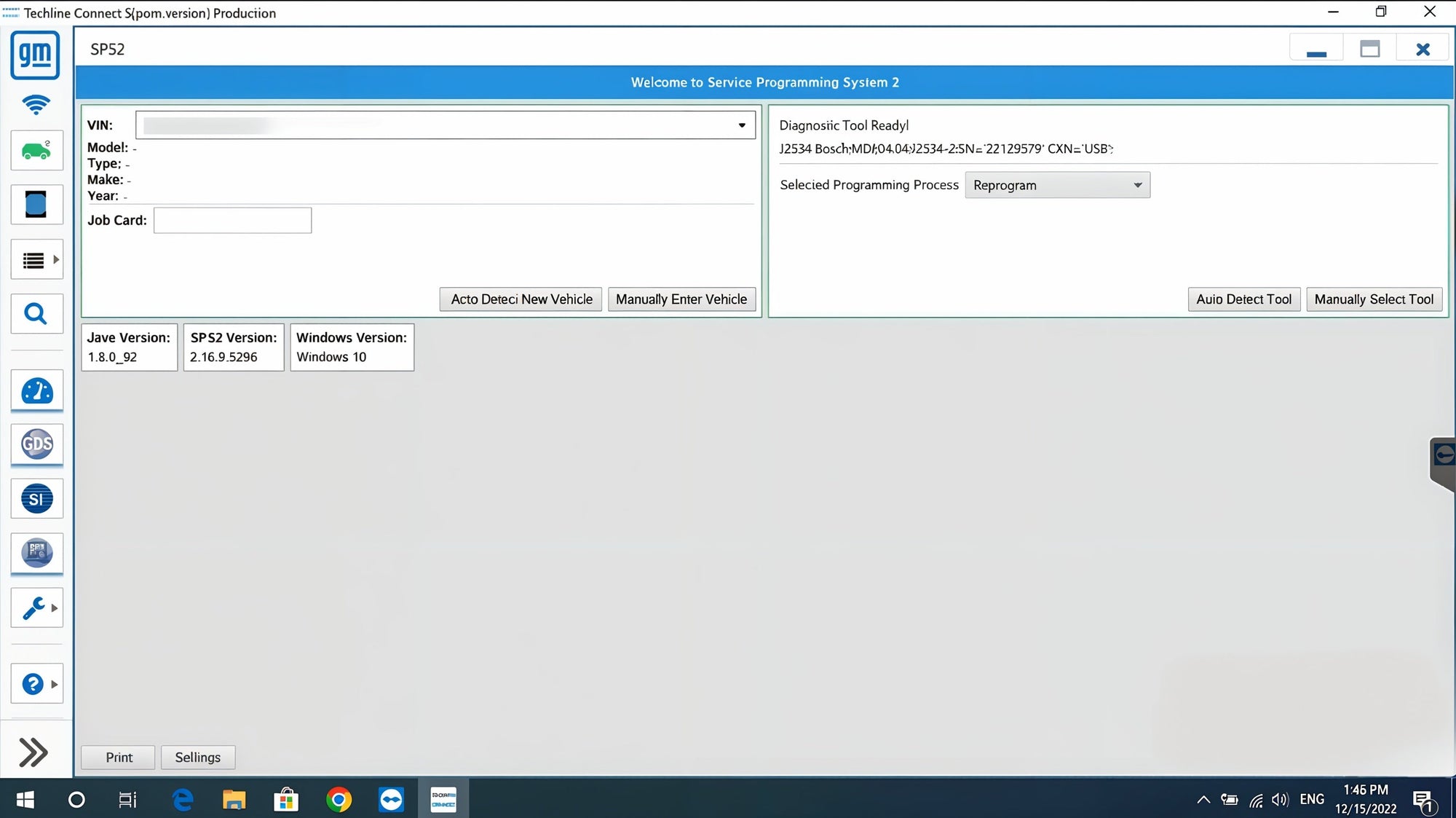

GM Techline Connect SPS2: A Professional Module Programming Guide
Why Successful GM Programming Starts Before SPS2 Writes Any Software
A failed GM programming event is not always caused by a bad control module or an incorrect calibration.
Many programming problems begin earlier—with the wrong VIN selected in Techline Connect, unstable vehicle voltage, an unreliable communication path, an incomplete replacement-module procedure or a diagnostic interface that loses connection while data is being written.
This is why GM Techline Connect SPS2 should be understood as more than a calibration-download screen. It is part of a controlled service-programming process that connects the vehicle VIN, control module, available GM software and required setup procedures.
When the preparation is correct, SPS2 provides a structured path for programming and reprogramming supported GM control modules. When the preparation is ignored, the same job can turn into communication errors, incomplete setup or repeated programming attempts.
How Techline Connect and SPS2 Divide the Work
Techline Connect is the main GM application environment. It brings together several workshop tools and establishes the active vehicle session.
SPS2, or Service Programming System 2, is the programming component used to access supported GM software and calibration procedures.
The distinction matters because Techline Connect and SPS2 are related, but they do not perform identical jobs.
| GM Application | Primary Role | Typical Workshop Use |
|---|---|---|
| Techline Connect | Vehicle-session and application environment | VIN selection, launching diagnostic and programming applications, and managing the active vehicle |
| SPS2 | Service programming | ECU and control-module programming, reprogramming, calibration selection and supported setup procedures |
| GDS2 | Vehicle diagnostics | Fault-code diagnosis, data display, output controls and supported service functions |
| Tech2Win | Legacy diagnostic emulation | Supported earlier GM diagnostic workflows that use Tech 2 functionality |
A professional GM workflow often begins with diagnosis in GDS2 or the appropriate legacy application, then moves into SPS2 only after the technician confirms that programming is required.
What SPS2 Actually Does During a Programming Event
SPS2 identifies the supported control unit and provides the applicable GM software or calibration path for the selected vehicle.
Depending on the repair, an SPS2 procedure may involve:
- Reprogramming an existing control module
- Programming and setting up a replacement module
- Installing updated GM calibrations
- Correcting software-related vehicle concerns
- Completing a field-action or service-update procedure
- Performing post-programming setup where instructed
- Recording the final programming result or warranty claim code
The software write is only one stage. The complete procedure can include module setup, ignition cycles, USB file transfer, calibrations, relearns or verification steps depending on the control unit and vehicle.
Why the Correct VIN Is Critical in Techline Connect
Techline Connect can retain previously accessed vehicles, which makes VIN verification one of the most important checks before programming begins.
The VIN displayed in the active Techline Connect session must match the physical VIN of the connected vehicle. Selecting a stored VIN from a previous session can cause SPS2 to load software or calibrations for the wrong vehicle configuration.
Before starting SPS2, the technician should confirm:
- The ignition or required vehicle power mode is active
- Techline Connect has read the connected vehicle
- The VIN shown in the vehicle list is correct
- The VIN in the active session matches the VIN plate
- The correct control module has been selected
This is not an administrative detail. SPS2 uses the vehicle identity to determine the appropriate programming information.
Replacement Module Programming Is Not the Same as Reprogramming
“Programming” is often used as one broad term, but GM workflows distinguish between updating an existing module and preparing a replacement module for service.
Reprogramming normally updates software or calibrations in a module already installed and recognized by the vehicle.
Replacement-module programming and setup can require additional steps because the new control unit must be prepared for the specific vehicle.
Depending on the module, the workflow may involve:
- Installing the correct software and calibrations
- Writing or validating vehicle-specific information
- Completing module setup
- Performing relearn or initialization procedures
- Clearing related diagnostic trouble codes
- Confirming communication with other control units
A module can be successfully programmed and still require a separate setup procedure before the repair is complete.
Real GM Workshop Jobs That Use SPS2
GM Techline Connect SPS2 is used when a repair requires factory service programming rather than ordinary fault diagnosis.
Common professional applications include:
- Engine Control Module programming
- Transmission Control Module programming
- Body Control Module setup
- Radio and infotainment software updates
- Parking-assist module programming
- Camera and driver-assistance module updates
- Brake and chassis control-module programming
- Gateway and network-module procedures
- Replacement control-module setup
- GM service campaigns and software-related repairs
The applicable procedure depends on the vehicle, module and GM service instructions. SPS2 should be used to perform the specified operation—not to update modules without a documented repair reason.
Calibration Updates Can Resolve Problems That Parts Replacement Cannot
A vehicle concern may be caused by control-module software rather than a failed physical component.
GM calibration updates can address operating logic, communication behavior, diagnostic sensitivity, drivability, infotainment concerns or system performance when the applicable service procedure calls for updated software.
This is why replacing hardware before checking the software path can lead to unnecessary cost.
A professional technician first determines:
- Whether a software update applies to the vehicle
- Which control module requires programming
- Whether the update is part of a bulletin, campaign or repair procedure
- Which setup or relearn must follow programming
- How the completed repair will be verified
SPS2 provides the programming environment, but the repair decision should still be based on accurate diagnosis and GM service information.
Why MDI 2 Is the Preferred GM Programming Interface
The GM MDI 2 is designed for communication between supported GM vehicles and Techline applications.
It is commonly used for both diagnostics and programming, but the communication requirements become stricter during an SPS2 event because data is being written to a control module.
A professional setup should include:
- A properly updated MDI 2
- A stable wired connection to the programming computer
- Correct MDI Manager configuration
- A reliable vehicle data-link connection
- A supported Windows environment
- A regulated vehicle power supply
Wireless communication may be convenient during diagnostic work, but current GM SPS programming procedures require a hard-wired connection to the MDI 2. Ethernet generally provides the strongest overall connection, while USB is also used where appropriate.
Using J2534 Pass-Thru Devices With GM SPS2
GM also supports suitable SAE J2534 pass-thru tools for service programming through the appropriate Techline Connect subscription and configuration.
This gives independent workshops another route to GM ECU and module programming without requiring the interface to function as a full replacement for every MDI 2 diagnostic capability.
Before using a J2534 device, confirm:
- The interface supports the required J2534 standard
- The correct manufacturer drivers are installed
- The device is recognized by Techline Connect
- The vehicle and procedure are supported
- The interface has a stable wired connection
- Technical support is available from the interface manufacturer
J2534 compatibility does not mean every pass-thru device performs identically. Programming stability should take priority over price or convenience.
Battery Support Is Part of the Programming Procedure
Vehicle voltage can change significantly while modules remain awake during programming. If voltage falls outside the required range, communication can be interrupted or the control unit may fail to complete the software write.
A normal battery charger is not always the same as a regulated programming power supply.
For professional SPS2 work, the vehicle should have:
- A healthy battery
- A stable regulated power source
- Unnecessary electrical loads switched off
- Doors, lighting, HVAC and accessories managed as instructed
- Voltage monitored throughout the procedure
Reliable power is one of the simplest ways to reduce avoidable programming failures.
Why a Wired Connection Became Mandatory for SPS Programming
GM programming files and programming events have increased in size and complexity. At the same time, workshop wireless environments have become more congested.
A temporary wireless interruption during diagnosis may only delay the technician. The same interruption during control-module programming can terminate the write process.
Current GM guidance therefore requires SPS events to use a wired MDI 2 connection through Ethernet or USB.
Technicians should also avoid assuming that plugging in a cable automatically ends an existing wireless session. The interface must be properly disconnected from wireless communication before the wired programming event begins.
SPS2, SPS3 and Vehicle-Wide Programming
SPS2 remains central to individual GM control-module programming and replacement-module setup.
On supported vehicles and procedures, GM has also introduced Vehicle-Wide Programming through SPS3. This newer process can identify multiple modules that require updates and program applicable control units during one coordinated event.
The distinction is important:
- SPS2: commonly used to program or reprogram an individual supported control module.
- SPS3 / Vehicle-Wide Programming: used for specified multi-module update procedures on supported vehicles.
Vehicle-Wide Programming should only be used when directed by the applicable GM procedure. If a control module has been replaced, GM instructions may require the replacement module to be programmed and set up individually before a vehicle-wide update is performed.
Programming Is Often Followed by Setup, Relearn or Calibration
A successful SPS2 result does not always mean the complete repair is finished.
Depending on the control module, the technician may still need to perform:
- Module setup
- Configuration procedures
- Security or immobilizer-related relearns where authorized
- Sensor calibration
- Camera or windshield learn procedures
- Crankshaft or transmission-related relearns
- Fault-code clearing and post-programming verification
The exact post-programming work should come from the applicable GM repair procedure. Skipping it can leave warning messages, incomplete functions or persistent diagnostic trouble codes even after the software write succeeds.
Common SPS2 Errors and What They Usually Point To
Programming error messages should be interpreted in context rather than treated immediately as proof of a failed module.
Common causes of SPS2 problems include:
- Loss of communication between the PC and interface
- Incorrect VIN selected in Techline Connect
- Unstable battery voltage
- Wireless communication used during programming
- Outdated MDI 2 software or drivers
- Unsupported or unstable J2534 hardware
- Another Techline application retaining the interface connection
- Failure to follow ignition-cycle instructions
- Incorrect module or programming option selected
A professional troubleshooting process verifies power, VIN, interface status and communication before condemning the control unit.
GM Brands and Vehicles Covered by Techline Connect SPS2
Techline Connect SPS2 supports applicable General Motors service-programming workflows. Exact coverage depends on model year, control module, available calibration data and the selected subscription.
| GM Brand | Typical SPS2 Use |
|---|---|
| Chevrolet | ECU programming, module updates, replacement-module setup and calibration installation |
| GMC | Powertrain, body, chassis, infotainment and network-module programming |
| Cadillac | Control-module software updates, setup procedures and supported calibration workflows |
| Buick | Module programming, service updates and software-related repair procedures |
| Earlier GM and Saturn Applications | Supported service programming where calibration data and the required workflow remain available |
Coverage should always be confirmed using the vehicle VIN and the exact module procedure rather than assuming every control unit supports the same programming functions.
Who Benefits Most From Techline Connect SPS2
GM Techline Connect SPS2 is especially relevant for:
- Independent GM specialist workshops
- Mobile module-programming technicians
- Collision-repair facilities replacing electronic modules
- ECU and control-module repair businesses
- Transmission and drivability specialists
- Auto electricians diagnosing software-related concerns
- Fleet workshops servicing Chevrolet, GMC, Cadillac and Buick vehicles
For these users, SPS2 provides access to the factory-style programming path needed when replacement hardware, updated calibrations or software-related repairs must be completed correctly.
Frequently Asked Questions
What is GM Techline Connect?
Techline Connect is GM’s application environment that brings together supported service programming, diagnostics and related technical applications for professional vehicle service.
What is SPS2 used for?
SPS2 is the GM Service Programming System used to program or reprogram supported control modules, install calibrations and complete applicable replacement-module procedures.
Can SPS2 program replacement modules?
Yes. SPS2 is used for supported replacement-module programming and setup procedures. The exact steps depend on the vehicle and control unit.
Does SPS2 work with MDI 2?
Yes. MDI 2 is the preferred GM communication interface for Techline diagnostics and SPS programming. Current SPS events require a stable hard-wired MDI 2 connection.
Can a J2534 interface be used with SPS2?
Suitable J2534 pass-thru interfaces can be used with the applicable Techline Connect service-programming subscription. Compatibility depends on the device, drivers, vehicle and procedure.
Does SPS2 diagnose vehicle faults?
SPS2 is primarily the service-programming component. GM diagnostics are generally performed through applications such as GDS2 or Tech2Win before the technician moves into SPS2.
What is the difference between SPS2 and GDS2?
GDS2 is used for diagnostics, live data and supported service functions. SPS2 is used for control-module programming, reprogramming and calibration procedures.
Why does SPS2 require the correct VIN?
The VIN identifies the connected vehicle and helps SPS2 determine the applicable software and calibrations. Programming with the wrong active VIN can create serious compatibility problems.
Is a battery maintainer required during GM programming?
A stable regulated power supply is strongly recommended and is required by many GM programming procedures to prevent voltage loss during the software write.
What is Vehicle-Wide Programming?
Vehicle-Wide Programming is an SPS3 function used on supported vehicles and specified procedures to update multiple applicable modules during one coordinated programming event.
Final Thoughts
GM Techline Connect SPS2 is valuable because successful GM programming involves more than choosing a module and clicking “reprogram.”
The correct VIN, applicable calibration, stable vehicle voltage, reliable MDI 2 or J2534 communication and required post-programming setup all determine whether the repair is completed successfully.
For professional Chevrolet, GMC, Cadillac and Buick service work, Techline Connect SPS2 provides the structured GM programming environment needed for ECU updates, replacement-module setup, calibration installation and software-related repairs.
